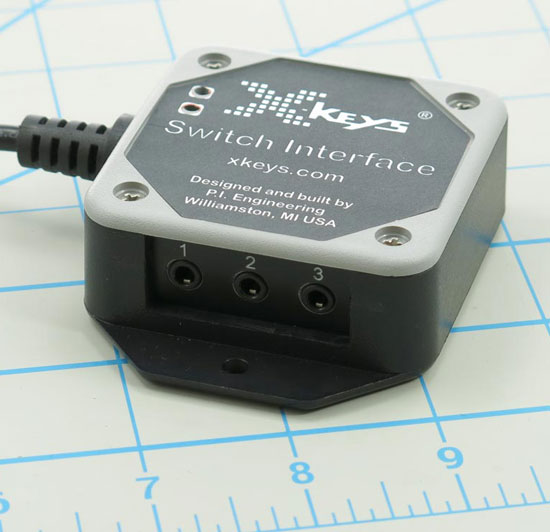

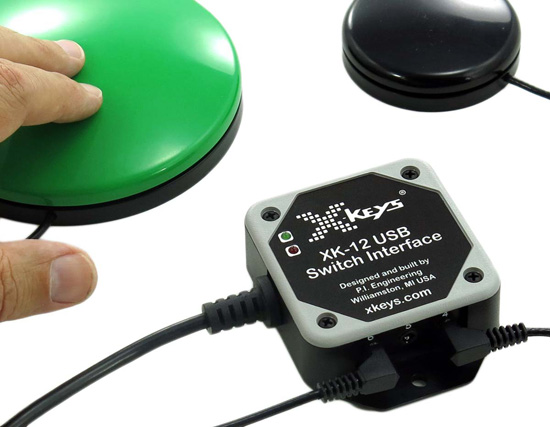

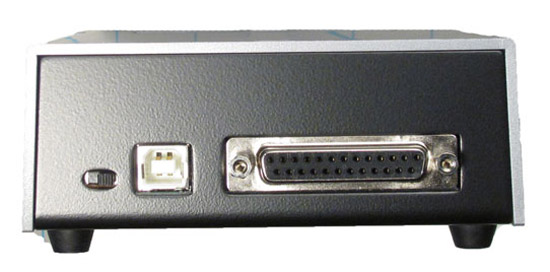

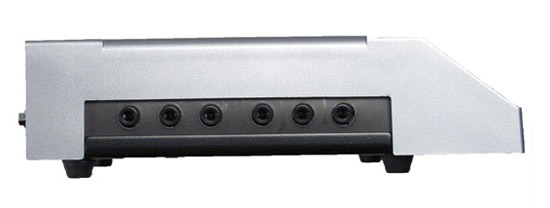

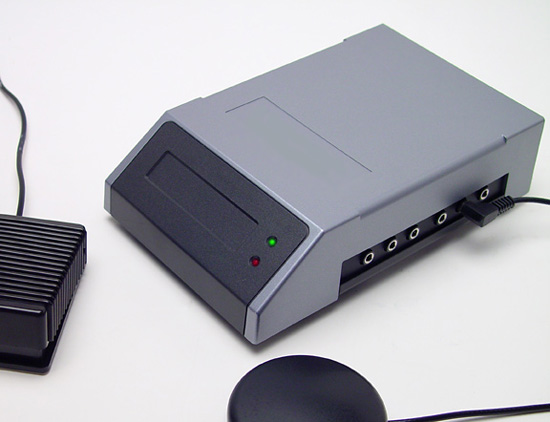

12 Port
USB Switch Interface

With Our 12 Port Interface, any switch can trigger an action from your computer. Connect up to 12 switches to our USB Switch Interface and program each switch with a function.

Any keyboard shortcut your software uses can have a designated switch (copy, paste, save, open, close). Switches are easily set up to launch applications, open files, or type short lines of text like names, addresses, and account numbers.

Switches are connected via Assistive Technology standard 3.5mm (1/8”) stereo or mono plugs.

• Connects to USB port just like a Keyboard or Mouse
• Perfect for Assistive Technology Users
• Works great for Displays and Kiosks
• Program Keyboard and Mouse commands
• Easily create you own macros

• Switch Dimensions: 2.55 inches X 2.55 inches X 1.0 inches
• 6 Stereo ports: can be split to 12 with optional Y cords
• 3.5mm Stereo ports (accepts 3.5mm mono or stereo plug)
• Each switch port is allocated 3 characters and
  a pool of 1060 additional keystrokes is available to any
  switches that require additional characters
• EEPROM, non-volatile memory
• 2 layers, user selectable toggle and/or shift button
• Color: Silver/Black
• Cord length: 92 inches
• RoHS compliant

• Compatible with Windows: XP and newer, including Windows10
• Compatible with Mac: OS X v10.4.11 or newer
• Compatible with Anroid
• Compatible with any architecture supporting USB
• KVM model specifically designed to work with KVM switches. Easy to program or duplicate & no software required to operate
• USB Connection
