Our Mini Data Terminals are ideal whenever you need to add a user interface to a machine, device or process. The possibilities are endless - MiniTerms are right at home whether connected to PCs, printers, automation or industrial control PLC systems, cash registers, or other POS terminals, electronic musical instruments, high-speed video cameras, security systems, CNC mill control and industrial pendants, access control systems and digital signage - just to name a few!

12 Key
Programmable
USB or RS232
Mini Terminal

12 Key
Membrane
Mini Terminal
Keypad

20 Key
Membrane
Mini Terminal
Keypad

20 Key
Re-legendable
Mini Terminal
Keypad

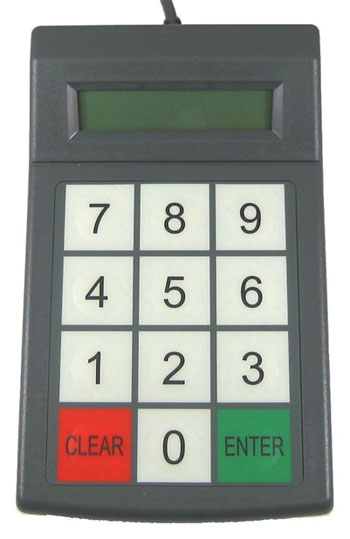

12 Key Programmable Mini Terminal

Presented in a 12 key configuration, this Mini Terminal is a macro-programmable LCD serial terminal that also includes a programmable buzzer. The Mini Terminal supports simple and complex re-programmable key macros as well as re-programmable system configurations through the RS232 serial port with a wide variety of baud rates and word formats.

Product Features:

12 key sealed Membrane Keypad: 20 million+ operations
2 X 16 super-twist back-lit LCD Display
Fully programmable serial settings and key table
Detachable USB cable included
Detachable Serial cable and power supply can be purchased sepaarately as ADB9KIT
Selectable USB virtual serial and USB HID keyboard functionality
Internal buzzer/alarm/audible key beeper (programmable: Can be turned on or off)
"Flash" memory holds key data and settings
Download Genovation re-programming software "MiniTermProSetUp" for easy customization and setup
Will work with legacy COM port applications
Automated LCD screen (Scripting mode)
LCD Smartie (serial LCD) plug-in available

Product Specifications:

Dimensions: 6.1 X 3.75 X 1.5 inches
Cord length of 6 feet
One year Manufacturers warranty

System Requirements:

Compatible with Windows: 2000 and Newer including Windows 10
Compatible with Mac: OSX
Compatible with Linux
USB connection

KP904U 12 Key Fully Programmable Keypad Mini Terminal w/LCD Readout includes USB cable for USB HID (Plug & Play).

KP904 12 Key Fully Programmable Keypad Mini Terminal w/LCD Readout includes USB cable for Virtual Serial recognition.

Description	Part Number	Price	Call 928-639-0161
12 Key Programmable Mini Terminal - USB HID (Plug and Play)	KP904U	$195.00	or Email
12 Key Programmable Mini Terminal - True Serial and Virtual Serial	KP904	$195.00	info@fentek-ind.com
DB9KIT 6' RJ-Serial Port cable and power supply for 904	ADB9KIT	$30.00	for Discounts
Keypad Protector for above Keypad	KBS447G00	$14.50	or Specials

Click for Shipping/Handling charges.

Every effort is made to ship Same Day order is received by 3:00 pm MST.

To place an order please call us at 928-639-0161,
or complete the Secure "Order Form" by clicking the Order Form button below.

For more product information please email Info@Fentek-Ind.com or
complete "InfoRequest" by clicking the Info Request button below.

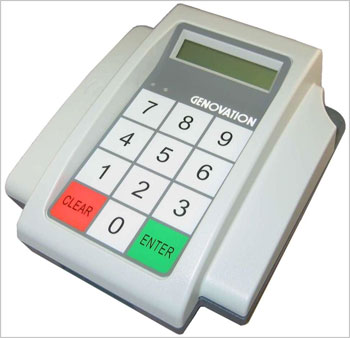

12 Key Programmable Mini Terminal

This 12 key MiniTerm is a fully programmable LCD mini-terminal. Our Mini Data Terminal supports simple and complex re-programmable key macros and system configurations. It includes detachable serial USB cables for easy setup and flexiblity, and is also wall-mountable.

12 key sealed Membrane Keypad: 20 million+ operations
2 X 16 super-twist back-lit LCD Display
2 programmable LEDs
Fully programmable serial settings and key table
Detachable cable USB
Wall Mountable
Selectable USB virtual serial and USB HID functionality
Internal buzzer/alarm/audible key beeper (programmable: Can be turned on or off)
"Flash" memory holds key data and settings
Includes Genovation re-programming software "MacroMaster232" for easy customization and setup
Will work with legacy COM port applications
LCD Smartie (serial LCD) plug-in available
Automated LCD screen (Scripting mode)
Dimensions: 7.25 X 6.0 X 2.25 inches
Compatible with Windows 95/98, NT 4.0, 2000, ME, XP, Vista, and Windows 7
Cord length of 6 feet
One year Manufacturers warranty

This unit can be customized with these options:

Magnetic Card Swipe Reader
Barcode Card Swipe Reader
Infrared Barcode Scanner
RFID Reader and Encoder
Dallas 1-wire iButton Reader
Proximity Card and Tag
Biometrics Scanner
RS232C Wedge Input on rear panel

Description	Part Number	Price
12 Key Mini Data Terminal - USB HID interface Plug and Play	KP905U	Call For Price
12 Key Mini Data Terminal - USB Virtual Serial COM interface	KP905VS	Call For Price

Click for Shipping/Handling charges.

Every effort is made to ship Same Day order is received by 3:00 pm MST.

To place an order please call us at 928-639-0161,
or complete the Secure "Order Form" by clicking the Order Form button below.

For more product information please email Info@Fentek-Ind.com or
complete "InfoRequest" by clicking the Info Request button below.

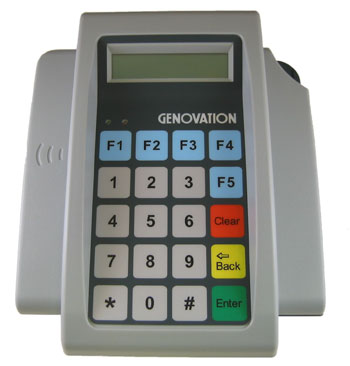

20 Key Membrane Mini Data Terminal

Easy to set-up and use
Operates in standard terminal or line-edit (pin-pad) mode
20 key sealed Membrane Keypad: 20 million+ operations
2 X 16 super-twist back-lit LCD Display
2 programmable LEDs
Fully programmable serial settings and key table
Detachable cables for RS-232 and USB (both included)
RS232C compliant (Full-duplex), supports a wide variety of baud rates and word formats
Selectable USB virtual serial and USB HID functionality
Internal buzzer/alarm/audible key beeper (programmable: Can be turned on or off)
"Flash" memory holds key data and settings
Includes Genovation re-programming software "MacroMaster232" for easy customization and setup
Will work with legacy COM port applications
LCD Smartie (serial LCD) plug-in available
Automated LCD screen (Scripting mode)
Dimensions: 7.25 X 6.0 X 2.25 inches
Compatible with Windows 95 and Newer
Compatible with Mac OSX
Cord length of 6 feet
One year Manufacturers warranty

This 20 key MiniTerm is a fully programmable LCD mini-terminal. Our Mini Data Terminal supports simple and complex re-programmable key macros and system configurations. It includes detachable serial (RS232) and USB cables for easy setup and flexiblity.

This unit can be customized with these options:

Magnetic Card Swipe Reader
Barcode Card Swipe Reader
Infrared Barcode Scanner
RFID Reader and Encoder
Dallas 1-wire iButton Reader
Proximity Card and Tag
Biometrics Scanner
RS232C Wedge Input on rear panel

Description	Part Number	Price
20 Key Mini Data Terminal - RS232 and USB Connection	KP906RJUSB	Call For Price

Click for Shipping/Handling charges.

Every effort is made to ship Same Day order is received by 3:00 pm MST.

To place an order please call us at 928-639-0161,
or complete the Secure "Order Form" by clicking the Order Form button below.

For more product information please email Info@Fentek-Ind.com or
complete "InfoRequest" by clicking the Info Request button below.

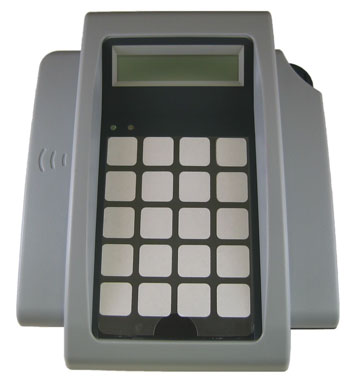

20 Key Relegendable Mini Data Terminal

Easy to set-up and use
Operates in standard terminal or line-edit (pin-pad) mode
20 key sealed relegendable Membrane Keypad: 20 million+ operations
2 X 16 super-twist back-lit LCD Display
2 programmable LEDs
Fully programmable serial settings and key table
Detachable cables for RS-232 and USB (both included)
RS232C compliant (Full-duplex), supports a wide variety of baud rates and word formats
Selectable USB virtual serial and USB HID functionality
Internal buzzer/alarm/audible key beeper (programmable: Can be turned on or off)
"Flash" memory holds key data and settings
Includes Genovation re-programming software "MacroMaster232" for easy customization and setup
Will work with legacy COM port applications
LCD Smartie (serial LCD) plug-in available
Automated LCD screen (Scripting mode)
Dimensions: 7.25 X 6.0 X 2.25 inches
Compatible with Windows 95 and Newer
Compatible with Mac OSX
Cord length of 6 feet
One year Manufacturers warranty

This 20 key relegendable MiniTerm is a fully programmable LCD mini-terminal. Our Mini Data Terminal supports simple and complex re-programmable key macros and system configurations. It includes detachable serial (RS232) and USB cables for easy setup and flexiblity.

This unit can be customized with these options:

Magnetic Card Swipe Reader
Barcode Card Swipe Reader
Infrared Barcode Scanner
RFID Reader and Encoder
Dallas 1-wire iButton Reader
Proximity Card and Tag
Biometrics Scanner
RS232C Wedge Input on rear panel

Description	Part Number	Price
20 Key Relegendable Mini Data Terminal - RS232 and USB Connection	KP907RJUSB	$Call For Price

Click for Shipping/Handling charges.

Every effort is made to ship Same Day order is received by 3:00 pm MST.

To place an order please call us at 928-639-0161,
or complete the Secure "Order Form" by clicking the Order Form button below.

For more product information please email Info@Fentek-Ind.com or
complete "InfoRequest" by clicking the Info Request button below.
