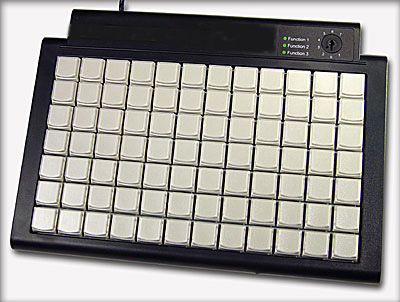

84 Key
Programmable Keypad

Our 84 Key Keypad provideds a convenient, direct input source from the user to the application via your USB interface. The Software Development Kit provides the programmer access to input from all keys, an 8 position locking switch, and the optional Magnetic Strip Reader or optional Optical Barcode Reader.

Clear keycaps keep your hand written or printed legends securely in place, protecting them from wear while making it quick and easy to update. Custom key legends and reverse etched keycaps provide a professional finish to any OEM project.

Rubber dome low profile keyswitches guaranteed for more than 1 million operations (key stem is compatible with Cherry MX).

• 84 Programmable Keys
• 8 position security key switch
• Power and Function LED indicators
• Supports multiple units on the same computer
• Define unique operations for each program you use
• Instantly program macros, hot keys or multiple steps
• One tap access to your favorite tools and functions
• Supported by MacroWorks3 software for Windows
  or ControllerMate for Mac (both Included)
• Comprehensive Software Development Kit for programmers
• Rubber dome low profile keyswitches guaranteed for more than
  1 million operations (key stem is compatible with Cherry MX)
• Relegendable Keycaps instantly create a custom layout
• Windows Compatible: XP, Vista and Windows7
• Mac Compatible: OS-X
• Other Operating systems that support USB keyboard
• Keypad Dimensions: 10.2 inches X 7.5 inches X 1.8 inches
• Cord Length: 126 inches
• RJ11 Foot Pedal Port
• Included Accessories:
  Double Keys (2 Horizontal, 2 Vertical)
  1 Quad Key (2 x 2)
  Key puller
  Legend Sheet
  7 Lock switch keys
  Programming software
• USB Connection


• Can be Special Ordered with Optional Mag Strip or Bar Code reader
• Mag Strip Reader: Numeric ASCII Code 39, Interleaved 2 or 5 Code
  EAN 8 and EAN 13 UPCE and UPCA, Code 128, CODABAR, Code 93, Code 11
• Bar Code Reader: ISO 7811 standard track 1 and track 2

Every effort is made to ship Same Day order is received by 3:00 pm MST.
