3M™ Adjustable Keyboard Trays

AKT100 Series work surface
product dimension and installation guidelines

Guidelines for installing on a straight edge, corner workstations and the
adjustment range of the AKT100 Keyboard Tray

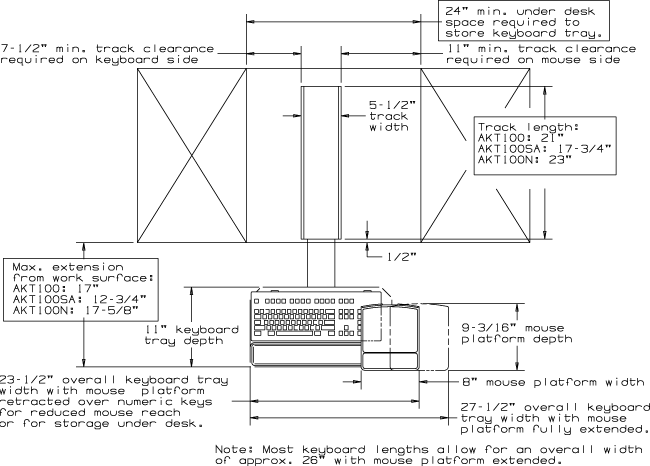

Straight work surface

straight workstation installation guidelines
Minimum of 24" under desk space required using the AKT100

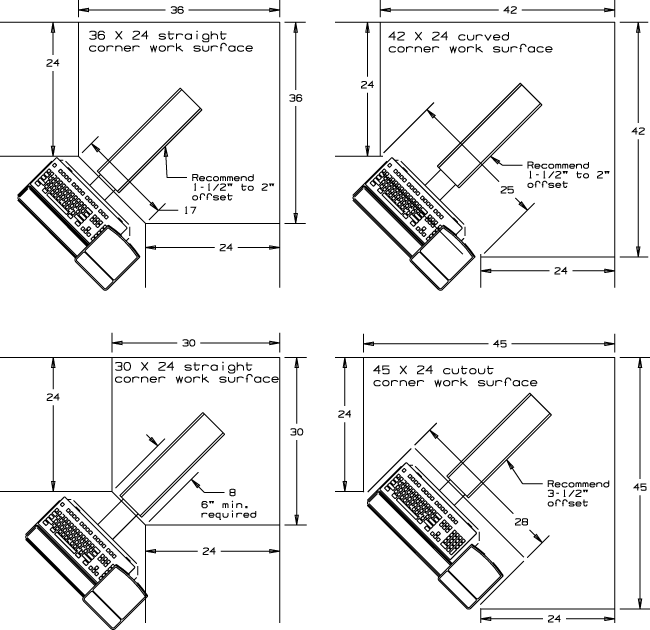

Corner work station

corner workstation installation guidelines
Minimum of 24" under desk space required using the AKT100


  Features Comparison Product Specifications Adjustablitiy Diagram Work Surface Dimension Requirements
